Focus System

Product Statement


DESCRIPTION

Focus stainless steel point based railing system manufactured by:
P + P Artec Inc, 700 Creel Drive, Wood Dale IL 60191
Phone: (630) 860-2990
Fax: (630) 860-5913
Email: Info@artec-rail.com

DESIGN

Like our other systems, the adjustable handrail segment allows any angle of descent and change of direction possible.

CRAFTSMANSHIP

P + P Artec decorative railing systems offer a completely seamless installation with NO splices, saddles, miters, or seams. All directional changes are welded and polished seamlessly in the field for a one of a kind installation. The high production standards of this fully developed stainless steel railing system assure our clients of a superior finished product.

CONSULTATION

From the first phone call to project completion, we are your partner. Our turnkey service saves you time and money by providing one point of contact to ensure all of your handrail requirements are met. We take care of the process for you.

ENGINEERING

All P + P Artec interior and exterior handrail systems are pre-engineered to meet applicable load requirements, and designed to meet or exceed ADA, IBC, and UBC code requirements.

SUBMITTALS

Shop drawings, engineering test reports, specifications, product data, and a small sample (upon request) accompany every decorative railing project we work on.

GUARANTEE

We will complete your project on time and within budget. With decades of experience as manufacturers of custom railing systems, we guarantee to be an added benefit to your project.

PRODUCT INFORMATION

TUBING

All handrail tube is in 304 Stainless Steel, 360-400 grit brushed finish, and seamless welds at all directional changes. Recommended 1.5” OD for handrails. Wood railings are optional (by others). Connection of wood railing to a 3⁄4” stainless steel square tube installed by P + P Artec. Stainless steel glass mounted cap option available.

POINT SYSTEM

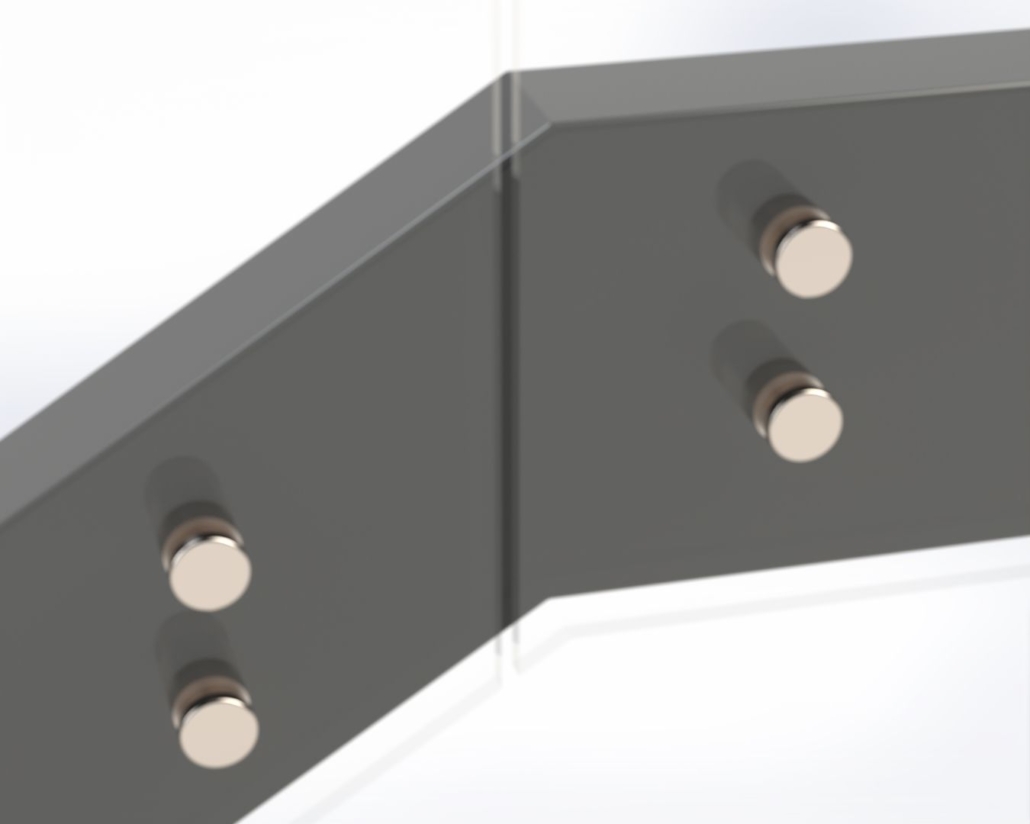

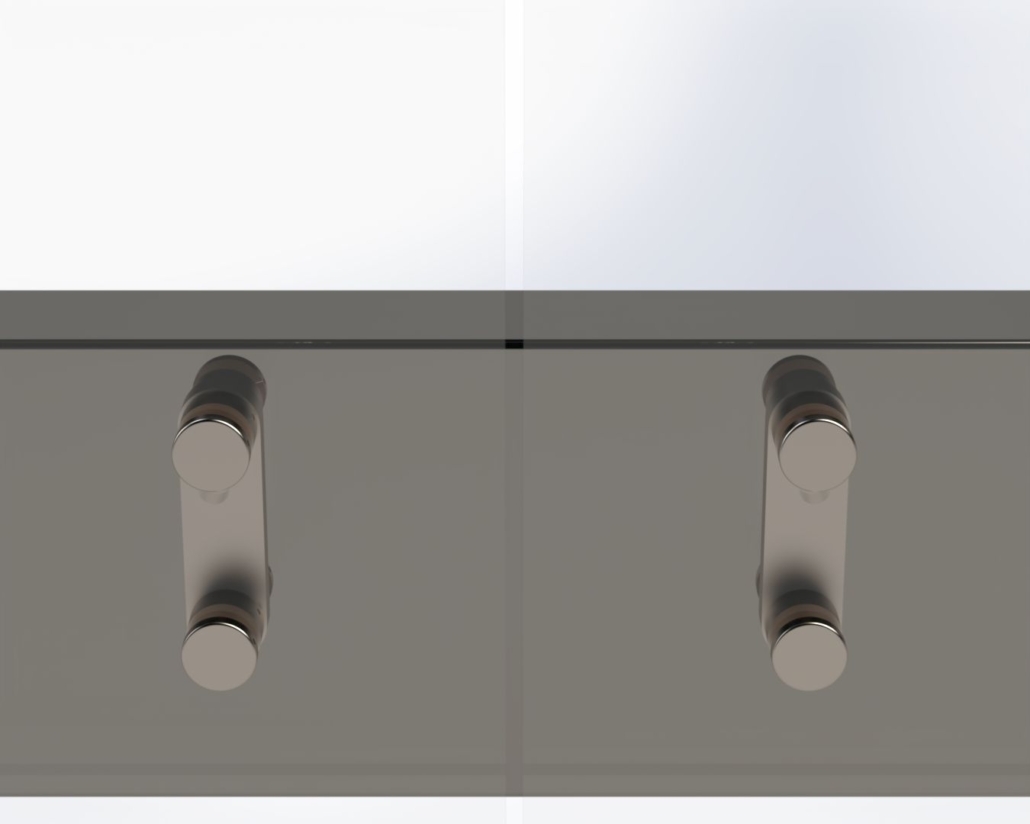

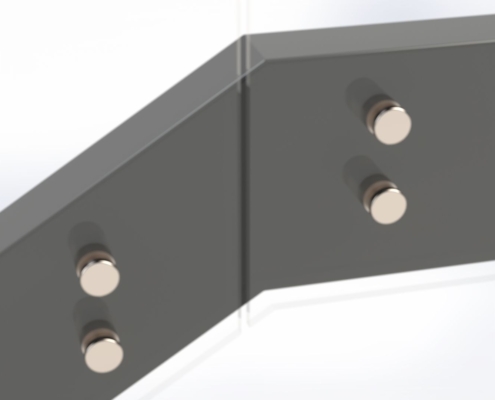

8 3/8”x2 3/8” 300 series Stainless Steel stringer plate – 2 buttons per plate. Concealed fasteners and adjustment capabilities within stringer plate. 2 plates per 4’ span of glass. Plates may be covered or exposed. Infinity design stringer plate option available. Stringer plate is optional based on site details.

FITTINGS

All fittings are designed specifically for use with the “FOCUS” custom railing system.

INFILL PANEL

1/2" thick glass thick clear tempered glass panel (meets load requirements). 3/4” thick clear tempered glass panel optional. Laminated, sandblasted and custom patterns are available upon request.

INSTALLATION

By P + P Artec trained and certified installation crews.

SCHEDULING

P + P Artec project managers will schedule all field measurement, installation, and delivery dates to meet your schedule.

WARRANTY

1 year from the date of commencement of use, substantial completion or date of notice of completion, whichever is first to occur.
